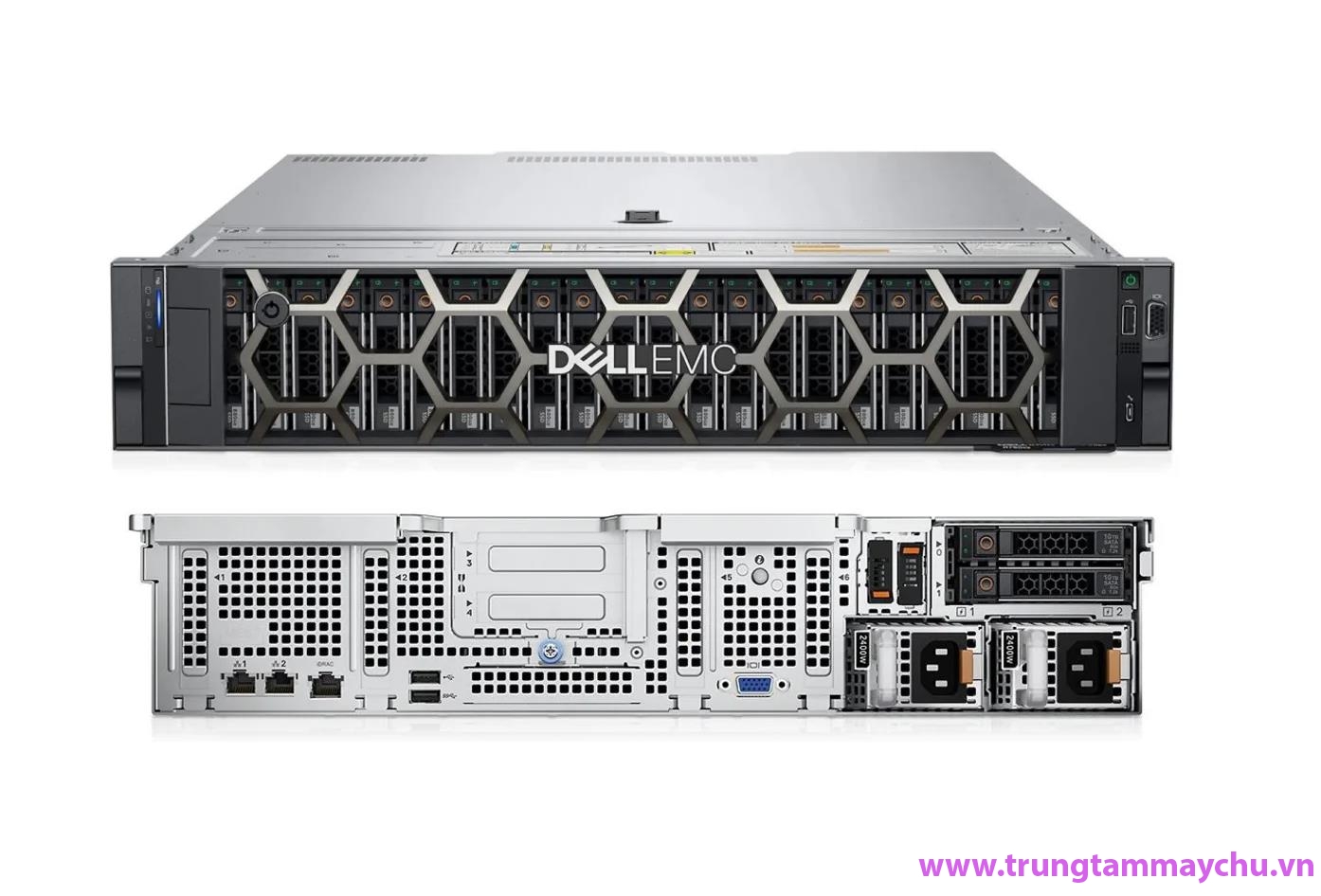

      Máy chủ Dell EMC Poweredge R750xs

      [ Part number: PE-R750xs ]

      2* 3rd Gen Intel Xeon Scalable processors

      16 DDR4 DIMM slots

      8* 3.5 or 16*2.5 SSD/SAS/SATA drives

      OCP3 + 6*PCIe LP Slots

      2 Port BCM5720 LOM

      Redundant 600W Platinum Power Supply

      Giá: Liên hệ

    Hệ thống System / Barebone





    Bo mạch chủ / MAINBOARD



    Bộ vi xử lý CPU / PROCESSOR

      x
      x
      x
      x
      x
      x
      x
      x
      x
      x
      x
      x
      x
      x

    Bộ nhớ RAM / MEMORY

      x
      x
      x
      x
      x
      x

    RAID CONTROLLER



    Ổ đĩa SSD / Solid State Drive

      x
      x
      x
      x
      x
      x

    Ổ đĩa cứng SAS

      x
      x

    Ổ đĩa quang / Optical Drive




    Mezzanine Card

      x
      x
      x
      x

    Card mạng Network Adapter (Vui lọng chọn thêm Riser card khi chọn số lượng >4 Card)

      x
      x
      x
      x
      x
      x
      x
      x
      x
      x
      x
      x
      x
      x

    Controller Card

      x
      x
      x
      x
      x

    Thiết bị khác / Accessories

      x
      x
      x
      x

    Bộ nguồn / Power Supply



    Features

    Technical Specifications

    Processor

    Up to two 3rd Generation Intel Xeon Scalable processors with up to 32 cores

    Memory

    • 16 DDR4 DIMM slots, supports RDIMM 1 TB max, speeds up to 3200 MT/s
    • Supports registered ECC DDR4 DIMMs only

    Storage controllers

    • Internal controllers: PERC H345, PERC H355, PERC H745, PERC H755, PERC H755N, HBA355i, S150
    • Internal Boot: Internal Dual SD Module, Boot Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs, USB
    • External PERC (RAID): PERC H840, HBA355e

    Drive Bays

    Front bays:

    • 0 drive bay
    • Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 128 TB
    • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
    • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
    • Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
    • Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 184.32 TB Rear bays:
    • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.36 TB

    Power Supplies

    • 600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
    • 800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
    • 1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
    • 1400W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant



    • 1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)

    Cooling options

    Air cooling

    Fans

    • Standard fans/High performance Silver fans/High performance Gold fans
    • Up to six hot swap fans

    Dimensions

    • Height – 86.8 mm (3.41 inches)
    • Width – 482.0 mm (18.97 inches)
    • Depth – 707.78 mm (27.85 inches) – without bezel

    721.62 mm (28.4 inches) – with bezel

    Form Factor

    2U rack server

    Embedded Management

    • iDRAC9
    • iDRAC Service Module
    • iDRAC Direct
    • Quick Sync 2 wireless module

    Bezel

    Optional LCD bezel or security bezel

    OpenManage Software

    • OpenManage Enterprise
    • OpenManage Power Manager plugin
    • OpenManage SupportAssist plugin
    • OpenManage Update Manager plugin

    Mobility

    OpenManage Mobile

    Integrations and Connections

    • BMC Truesight
    • Microsoft System Center
    • OpenManage Integrations
    • Red Hat Ansible Modules
    • VMware vCenter and vRealize Operations Manager
    • IBM Tivoli Netcool/OMNIbus
    • IBM Tivoli Network Manager IP Edition
    • Micro Focus Operations Manager
    • OpenManage Connections
    • Nagios Core
    • Nagios XI

    Security

    • Cryptographically signed firmware
    • Secure Boot
    • Secure Erase
    • Silicon Root of Trust
    • System Lockdown (requires iDRAC9 Enterprise or Datacenter)
    • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

    Embedded NIC

    2 x 1 GbE LOM

    Network Options

    1 x OCP 3.0

    GPU Options

    Not supported

    Ports

    Front Ports

    • 1 x iDRAC Direct (Micro-AB USB) port
    • 1 x USB 2.0
    • 1 x VGA

    Rear Ports

    • 1 x USB 2.0
    • 1 x Serial (optional)
    • 1 x USB 3.0
    • 2 x Ethernet
    • 1 x VGA

    Internal Ports

    • 1 x USB 3.0 (optional)

    PCIe

    Up to 5 x PCIe Gen4 slots + 1 x PCIe Gen3 slots

    • 3 x16 Gen4 low profile
    • 2 x16 Gen4 low profile (optional)
    • 1 x8 Gen3 (x4 lane) low profile

    Operating System and Hypervisors

    • Canonical Ubuntu Server LTS
    • Citrix Hypervisor
    • Microsoft Windows Server with Hyper-V
    • Red Hat Enterprise Linux
    • SUSE Linux Enterprise Server
    • VMware ESXi

    For specifications and interoperability details, see Dell.com.

    OEM-ready version available

    From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com.
