    • QLogic 16Gb FC Dual-port HBA

      [ Part number: 00Y3341 ]

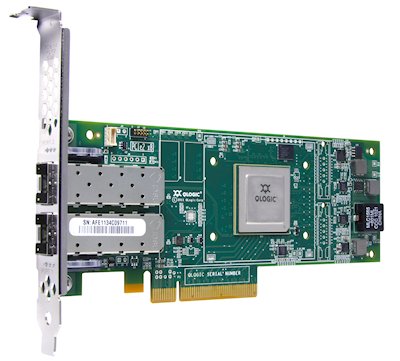

      QLogic 16Gb FC Dual-port HBA for IBM System x

      Giá: Liên hệ

    Chọn mua

    Mua hàng



    Features

    The QLogic 16Gb FC Single-port and Dual-port HBAs have the following features:

    • Port architecture that offers independent functionality on each port -- independent CPU, isolated memory and independent firmware image -- provides higher reliability and predictable performance.
    • Support for Message Signaled Interrupts eXtended (MSI-X) improves host utilization and enhances application performance.
    • Support for 16 Gb, 8 Gb, and 4 Gb FC devices.
    • Full hardware offload for Fibre Channel protocol.
    • Support for PCIe 2.0 and PCIe 3.0 host interfaces.
    • Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV) with 255 N_Port IDs per port.
    • Host-to-fabric Fibre Channel Security Protocol (FC-SP) authentication.
    • A common driver model allows a single driver to support all QLogic HBAs on a given operating system.
    • Universal boot capability allows the appropriate boot environment to be automatically selected for any given hardware.
    • Boot from SAN capability reduces the system management costs and increases uptime.



    Technical specifications

    The QLogic 16Gb FC Single-port and Dual-port HBAs have the following specifications:

    • Host interface: PCI Express 2.0 x8 or PCI Express 3.0 x4 (physical connector is PCIe x8)
    • Single-port or dual-port SFP+ based adapters
    • Support for 16 Gb, 8 Gb and 4 Gb FC link speeds, which are automatically negotiated
    • Data rate: 14.025 Gbps (1600 MBps), 8.5 Gbps (800 MBps), and 4.25 Gbps (400 MBps) autosensing (per port), with full duplex
    • Performance: Over 500,000 IOPS per port (over 1,200,000 IOPS per dual-port adapter)
    • Throughput: 3,200 MB per port, full-duplex
    • 2048 concurrent logins
    • 255 N_Port IDs (NPIV) per port
    • Industry standards:
      • Current ANSI/IETF standards: FC-PI-4, FC-PI-5, FC-FS-2 with amendment 1, FC-AL-2 with amendments 1 and 2, FC-LS-2, FC-GS-6, FC-DA, FC-SP-2, FCP-4, FC-MJS, FC-SB-4, FC-SP, SPC-4, SBC-3, SSC-3, and RFC4338
      • Legacy ANSI/IETF standards: FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-FS, FC-AL, FC-GS-2/3/4/5, FCP, FCP-2, FC-SB-2, FC-FLA, FC-HBA, FC-PLDA, FC-TAPE, FC-MI, SPC-3, SBC-2, SSC-2, and RFC2625
    • Topology: Point-to-point and switched fabric
    • Supported media: 16 Gbps Fibre Channel LC SFP+ short wave optical transceivers (850 nm), hot-pluggable
    • Management software:
      • The QLogic QConvergeConsole (QCC) management software delivers a unified web based single-pane-of-glass management console across the QLogic family of storage and networking adapters. A graphical user interface (GUI) or command line interface (CLI) are available. A VMware vCenter plug-in is also available.
      • Common IT tasks, such as VLAN configuration and teaming, can be easily accomplished either through QConvergeConsole or through native OS tools, thereby minimizing IT training and deployment costs.
      • Role-based authentication allows for separate logins and access for SAN and LAN administrators. This eliminates the need to change your organizational structure as you converge your network.
