Product SKUs

MBD-X11DPL-i

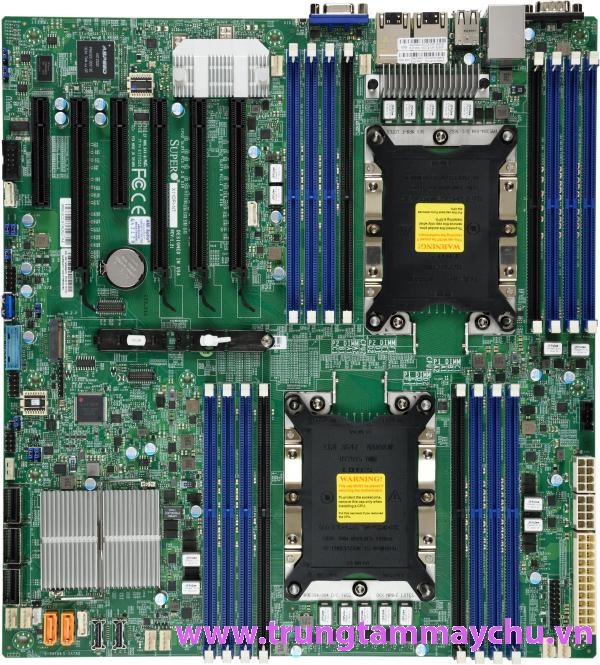

X11DPi-N (Bulk Pack)

Physical Stats

Form Factor

E-ATX

Dimensions

12" x 13" (30.48cm x 33.02cm)

Processor/Cache

CPU

Intel® Xeon® Scalable Processors.

Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s

System Memory

Memory Capacity

Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

Memory Type

2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes

RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 128GB

Memory Voltage

1.2V

Error Detection

Corrects single-bit errors

On-Board Devices

Chipset

Intel® C621

SATA

Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

ASPEED AST2500

Network Controllers

Dual LAN with 1GbE with Marvell® 88E1512

Graphics

Aspeed AST2500 BMC

Input / Output

USB

5 USB 3.0 ports (2 rear + 2 via header(s) + 1 Type A)

Video Output

1 VGA port(s)

Serial Port / Header

2 COM Ports (1 rear, 1 header(s))

TPM

1 TPM Header

Expansion Slots

PCI-E

4 PCI-E 3.0 x16,

2 PCI-E 3.0 x8

M.2

Interface: PCIe 3.0 x4
Form Factor: 2260, 2280, 22110

System BIOS

BIOS Type

AMI UEFI

Management

Software

Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring

Voltage

+1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control

FAN

8x 4-pin fan headers (up to 8 fans), Overheat LED indication, PWM fan speed control

Temperature

N/A

LED

N/A

Other Features

Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS

Operating Environment

Operating Temperature Range

0°C ~ 50°C (32°F ~ 122°F)

Non-Operating Temperature Range

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range

10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range

10% ~ 95% (non-condensing)
