    Raid Card

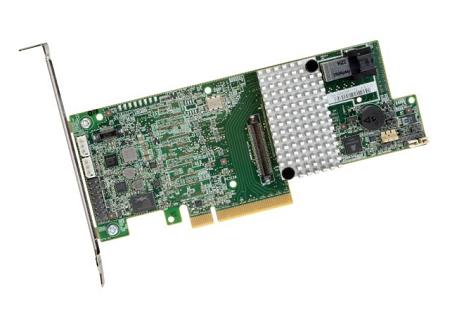

      LSI MegaRAID SAS 9361-4i Storage Adapter

      [ Part number: 9361-4i ]

      LSI MegaRAID SAS 9361-4i Mini-SAS HD, PCI-Express card. Raid 0, 1, 5, 6, 10, 50, 60

      Giá: Liên hệ

    Chọn mua

    Mua hàng

    LSI MegaRaid SAS 9361-4i Features

    • High performance with 12Gb/s data transfer rates
    • Four internal 12Gb/s SATA+SAS ports
    • One miniSAS SFF8643 internal connector (horizontal mount)
    • LSISA3108: 1.2GHz PowerPC® 476 dual core 12Gb/s ROC
    • PCI Express 3.0 host interface
    • 1GB DDRIII cache memory
    • RAID levels 0,1,5,6,10,50 and 60
    • Support for CacheVault® flash cache protection
    • 12Gb/s solutions accelerate performance for next-generation datacenters, web and cloud
    • Delivers enterprise-class data protection and security
    • Preserves investment in 6Gb/s and 3Gb/s drives
    • Support for LSI Advanced Software options
    • Connect up to 128 3Gb/s, 6Gb/s, or 12Gb/s SATA and SAS devices
    Specifications
    Solution
    Provided    		 Four-port internal 12Gb dual core ROC-based SAS solution for data center, cloud, and performance-hungry applications using up to 128 SAS or SATA devices
    Physical Dimensions MD2 low profile (6.6" X 2.536")
    Connectors One mini-SAS SFF8643 internal connector (horizontal mount)
    Device Support Up to 128 SAS and/or SATA devices
    Host Bus Type x8 lane PCI Express 3.0 compliant
    Data Transfer Rates Up to 12Gb/s per port
    I/O Processor / SAS Controller LSISAS3108 dual core RAID on Chip (ROC)
    Cache Memory 1GB 1866MHz DDRIII SDRAM
    Cache Protection Optional CacheVault Flash Module (LSICVM02) - Includes CVFM04, CVPM02, mounting clip, and cable
    Key RAID Data Protection Features
    • RAID levels 0, 1, 5 and 6
    • RAID spans 10, 50, and 60
    • Online Capacity Expansion (OCE)
    • Online RAID Level Migration (RLM)
    • Auto resume after loss of system power during array rebuild or RLM
    • Single controller multipathing
    • Load balancing
    • Configurable stripe size up to 1MB
    • Fast initialization for quick array setup
    • Check Consistency for background data integrity
    • SSD Support with SSD Guard™ technology
    • Patrol read for media scanning and repairing
    • 64 logical drive support

    • Up to 64TB LUN support
    • DDF-compliant Configuration on Disk
    • S.M.A.R.T. support
    • Global and dedicated Hot Spare with Revertible Hot Spare support
      - Automatic rebuild
      - Enclosure affinity
      - Emergency SATA hot spare for SAS arrays
    • Enclosure management - SES (inband) - SGPIO (sideband)
    • Databolt™ bandwidth optimizer technology support for compatible expander-based enclosures
    • Shield State drive diagnostic technology
    Operating Temperature Maximum ambient: Controller Card: 55°C, with optional CacheVault accessory (LSICVM02): 55°C
    Operating Voltage +3.3V, +12V
    MTBF (Calculated) 1,343,187 hours
    Hardware Warranty 3 years, free 5x8 phone support, advanced replacement option
    Regulatory Certifications EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
    MegaRAID Management Suite
    • MegaRAID Storage Manager ™
    • StorCLI (command-line interface)

    • CTRL-R (BIOS configuration utility)
    • HII (UEFI Human Interface Infrastructure)
    SSD Optimization
    • MegaRAID CacheCade Pro 2.0 Software leverages SSDs in front of HDD volumes to create high-capacity, high-performance controller cache pools (Optional Upgrade)
    • MegaRAID Fast Path Software provides high-performance I/O acceleration for SSD arrays connected to 6Gb/s MegaRAID SATA+SAS controllers (Included)
    Compliances EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950
    OS Support Extensive support includes Microsoft® Windows® Server 2012/Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.
    Visit the LSI download center for the most complete list of supported operating systems: http://www.lsi.com/support



    LSI Megaraid SAS 9361-4i Storage Adapter

    Product Brief

    User Guide
