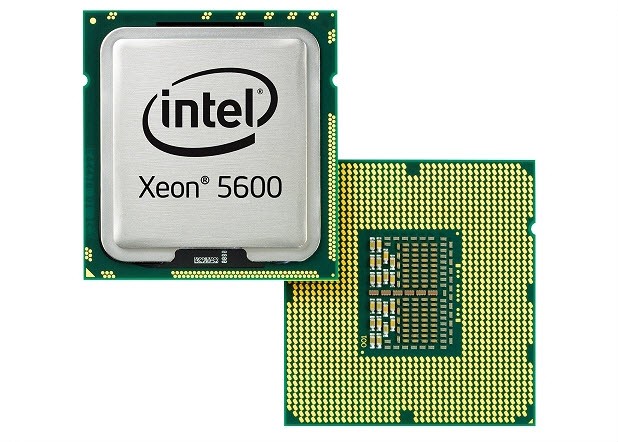

Intel Xeon 6-Core Westmere-EP X5690 3.46GHz 12MB cache, 6.4GT/s Intel QPI, Turbo Boost, Hyper-Threading
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Server |
| Family | Intel Xeon 5600 |
| Model number | X5690 |
| CPU part numbers | AT80614005913AB is an OEM/tray microprocessor BX80614X5690 is a boxed microprocessor |
| Frequency | 3467 MHz |
| Turbo frequency | 3733 MHz (1 or 2 cores) 3600 MHz (3 or more cores) |
| Bus speed | 6.4 GT/s QPI (3200 MHz) |
| Clock multiplier | 26 |
| Package | 1366-land Flip-Chip Land Grid Array (FC-LGA10) |
| Socket | Socket 1366 (LGA1366) |
| Size | 1.77" x 1.67" / 4.5cm x 4.25cm |
| Architecture / Microarchitecture | |
| Microarchitecture | Nehalem |
| Platform | Tylersburg-EP Tylersburg-EN Tylersburg-WS |
| Processor core | Westmere-EP |
| Core stepping | B1 (Q4F1, SLBVX) |
| CPUID | 206C2 (SLBVX) |
| Manufacturing process | 0.032 micron High-K metal gate process |
| Data width | 64 bit |
| The number of cores | 6 |
| The number of threads | 12 |
| Floating Point Unit | Integrated |
| Level 1 cache size | 6 x 32 KB instruction caches 6 x 32 KB data caches |
| Level 2 cache size | 6 x 256 KB |
| Level 3 cache size | 12 MB |
| Physical memory | 288 GB |
| Multiprocessing | Up to 2 processors |
| Features |
|
| Low power features | Enhanced SpeedStep technology |
| On-chip peripherals |
|
| Electrical/Thermal parameters | |
| V core | 0.75V - 1.35V |
| Maximum operating temperature | 78.5°C |
| Thermal Design Power | 130 Watt |
| Notes on Intel AT80614005913AB | |
| |
