| General information | |
| Type | CPU / Microprocessor |
| Market segment | Server |
| Family | Intel Xeon Bronze |

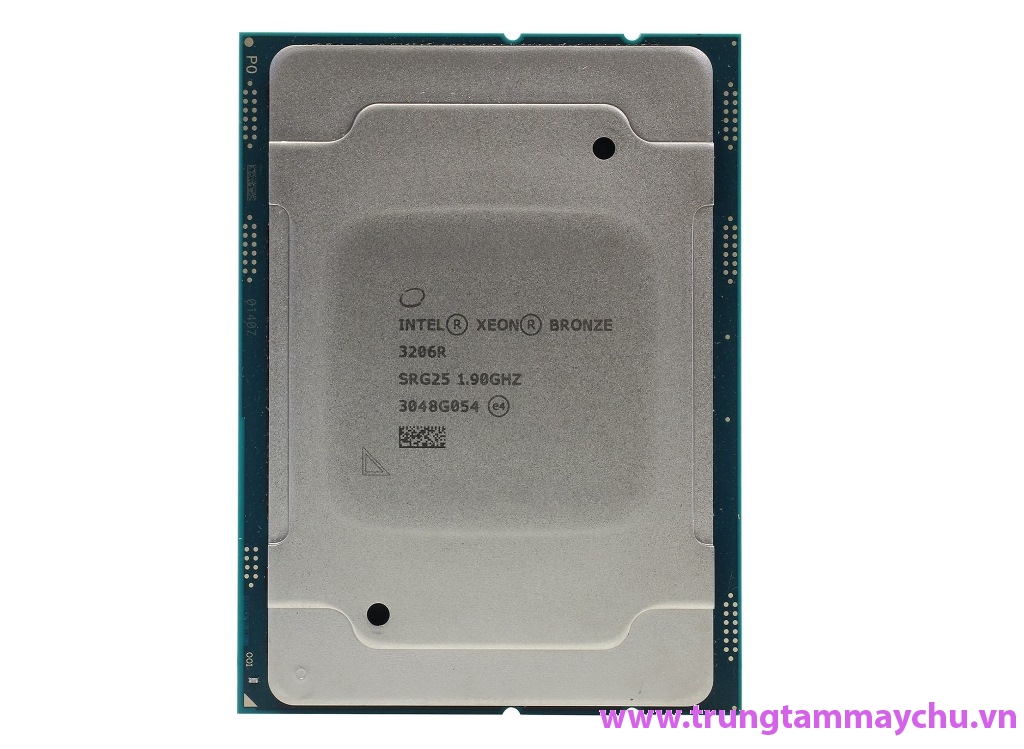

| Model number | 3206R |
| Frequency | 1900 MHz |
| Bus speed | 9.6 GT/s UPI |
| Clock multiplier | 19 |
| Package | 3647-land Flip-Chip Land Grid Array (FC-LGA) |
| Socket | Socket 3647 / P0 / LGA3647-0 |
| Size | 2.99" x 2.22" / 7.6cm x 5.65cm |
| Architecture / Microarchitecture | |
| Microarchitecture | Cascade Lake |
| Processor core | Cascade Lake-SP |
| Core stepping | R1 (SRG25) |
| Manufacturing process | 0.014 micron |
| Data width | 64 bit |
| The number of CPU cores | 8 |
| The number of threads | 8 |
| Floating Point Unit | Integrated |
| Level 1 cache size | 8 x 32 KB instruction caches 8 x 32 KB data caches |
| Level 2 cache size | 8 x 1 MB caches |
| Level 3 cache size | 11 MB shared cache |
| Physical memory | 1 TB |
| Multiprocessing | Up to 2 processors |
| Extensions and Technologies |
|
| Security Features |
|
| Low power features |
|
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels (per controller): 6 Memory channels (total): 6 Supported memory: DDR4-2133 ECC supported: Yes |
| Other peripherals |
|
| Electrical / Thermal parameters | |
| Maximum operating temperature | 78°C |
| Thermal Design Power | 85 Watt |
Chip vi xử lý Intel Xeon Gold 6230R 2.1G, 26C/52T, 10.4GT/s, 35.75 M Cache, Turbo, HT (150W) DDR4-2933
Chip vi xử lý Intel Xeon Gold 6238R 2.2G, 28C/56T, 10.4GT/s, 38.5 M Cache, Turbo, HT (165W) DDR4-2933
Chip vi xử lý Intel Xeon Gold 6226R 2.9G, 16C/32T, 10.4GT/s, 22 M Cache, Turbo, HT (150W) DDR4-2933
Chip vi xử lý Intel Xeon Gold 6210U 2.5G, 20C/40T, 27.5M Cache, Turbo, HT (150W) DDR4-2933
Chip vi xử lý Intel Xeon Gold 6212U 2.4G, 24C/48T, 35.75M Cache, Turbo, HT (165W) DDR4-2933
Chip vi xử lý Intel Xeon Gold 6209U 2.1G, 20C/40T, 27.5M Cache, Turbo, HT (125W) DDR4-2933
Chip vi xử lý Intel Xeon Gold 6208U 2.9G, 16C/32T, 22M Cache, Turbo, HT (150W) DDR4-2933
Chip vi xử lý Intel Xeon Gold 5220R 2.2G, 24C/48T, 10.4GT/s, 35.75M Cache, Turbo, HT (150W) DDR4-2666
