Compliance

• 802.3, 802.3u, 802.3x, 802.3ab, 802.3ad, 802.1p, 802.1Q, 802.3az, IEEE 1588
• PCIe v2.0 standard
• RoHS (6 of 6)
• FCC (U.S. only) Class B
• DOC (Canada) Class B
• CE EN 55024, EN55022 Class B
• VCCI Class II
• UL 1950
• CSA 950
• EN 60950
• CE
• ACPI 1.1a
• Microsoft WHQL (Windows Hardware Quality Labs)

General Specifications

Communications Processor

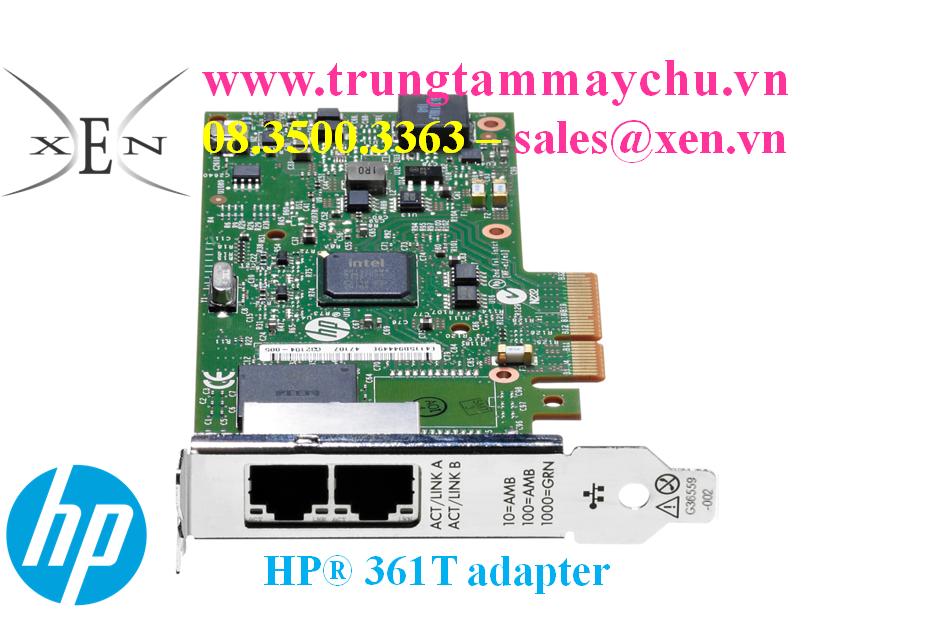

Intel® Ethernet I350 Controller

Data rate

10/100/1000 Mbps, Half- and full-duplex

Data path

Four lane (x4) PCI Express compatible with x4, x8, and x16 PCI Express slots

Interrupt levels

Automatically configured

Cable Connector

Two RJ-45

Bus Connector

PCIe

Distance and
Wiring

Up to 328 feet/100 m with Category 5 (or better) twisted-pair cabling

Card Dimensions(without brackets)
(L x W)

5.3 x 2.5 in (13.50cm x 6.4 cm)

Power and Environmental Specifications

Operating

Temperature

32° to 131° F (0° to 55° C )

Humidity

10% to 95% non-condensing

Non-operating

Temperature

-40° to 185° F (-40° to 85° C)

Humidity

-5% to 95%

Power requirement

4.1W idle without EEE link partner
3.2W idle with EEE link partner
4.2W maximum

Emissions Standards

FCC Class B, VCCI Class B, BSMI Class A, CISPR 22 Class B,
EN 55022 Class B, EN55024-1, ICES-003 Class B, MIC Class B, ACA Class B

Safety Compliant

UL, Canada UL, EN60950

Operating System Support

• Microsoft Windows Server 2008
• Microsoft Windows HPC Server 2008
• Red Hat Enterprise Linux 5.7, 6.1
• SUSE Linux Enterprise Server
• Solaris 10
• ESX/ESXi 4.1 & ESXi 5.0
• Citrix Xenserver 6.0
• Microsoft Windows Hyper-V

NOTE: For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem Server Linux matrix:http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html
NOTE: For more OS support & certification information, please visit the NIC driver download web pages at this location: http://h18004.www1.hp.com/support/files/networking/us/index.html
