      HP NC523SFP 10GbE 2-port

      [ Part number: 593717-B21 ]

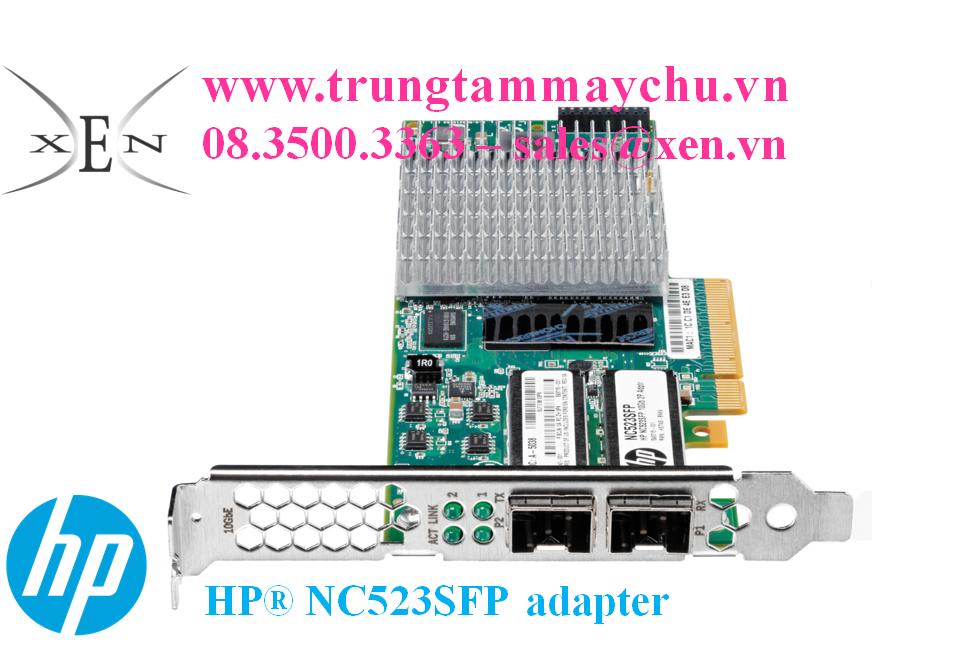

      HP NC523SFP 10Gb 2-port Server Adapter

      Giá: Liên hệ

    Chọn mua

    Mua hàng



    Compliance IEEE 802.3ae,802.3ad, 802.1p, 802.1Q 802.3x
    Safety UL, Canada UL, EN 60950
    Emissions FCC Class A, VCCI Class A, BSMI Class A, CISPR 22 Class A, ACA Class A, EN55022 Class A, EN55024-1, ICES-003 Class A, MIC Class A
    Other PCIe v2.0
    RoHS compliance 6 of 6
    IPv4, IPv6
    CE
    ACPI 1.1a
    Microsoft WHQL (Windows Hardware Quality Labs)
    Server Design Guide version 3.0 (SDG 3.0)

    General Specifications

    Controller QLogic cLOM8214
    Onboard memory 256MB
    Data rate 10,000 Mbps per port, (40 Gbps aggregate full duplex, dual ports)
    Data Path 8 Lane (x8) PCI Express, compatible with x4 and x8 bus widths
    Dimensions (LxW) 6.6 x 2.7 in (16.7 x 6.8 cm) without bracket
    Power and Environmental Specifications Operating Temperature 32° to 131° F (0° to 55° C)
    Humidity 10% to 90% non-condensing
    Non-operating Temperature -40° to 158° F (-40° to 70° C)
    Humidity 5% to 95%
    Power 17 Watts typical, 19 Watts maximum
    Operating System Support Microsoft Windows Server 2008, Server 2008R2, and HPC Server 2008, 32 and 64-bit
    Microsoft Windows Server Hyper-V
    Red Hat Enterprise Linux 5.x and 6.0
    SLES 10 and 11
    VMware 4.0 and 4.1
    NOTE: For more Linux OS support & certification information, please visit our the ProLiant & BladeSystem Server Linux matrix:http://h18004.www1.hp.com/products/servers/linux/hplinuxcert.html
