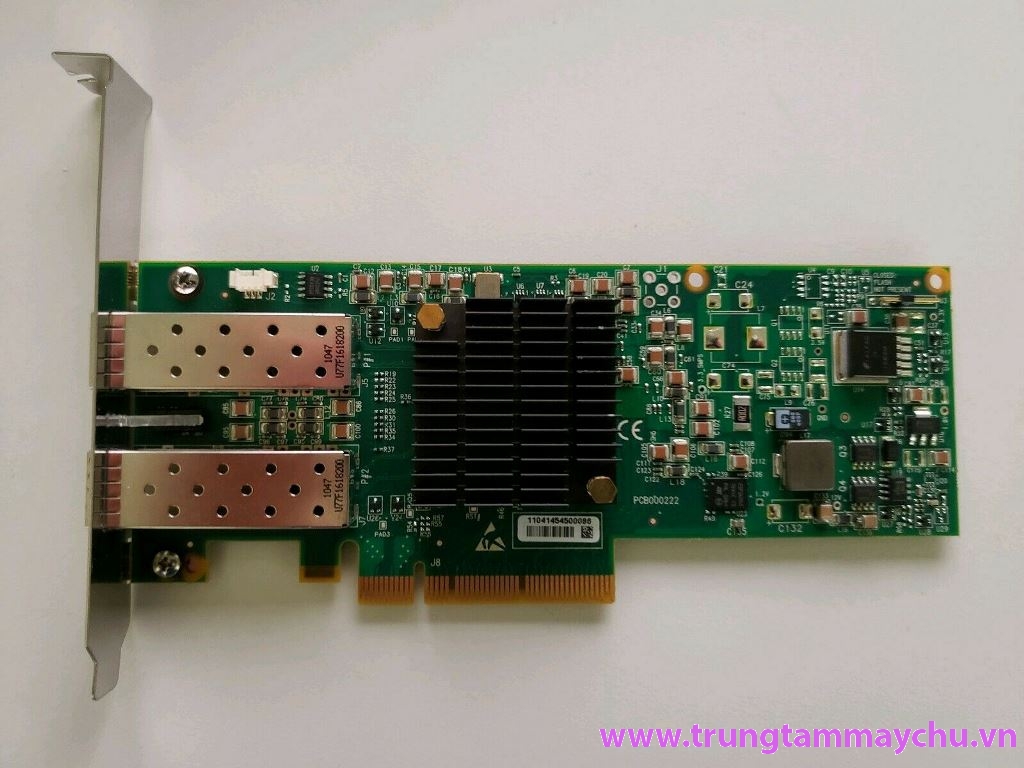

ConnectX-2 EN Ethernet Network Interface Cards (NIC) deliver high-bandwidth and industry- leading 10GigE connectivity with stateless offloads for converged fabrics in High-Performance Computing, Enterprise Data Centers, and Embedded environments. Clustered databases, web infrastructure, and IP video servers are just a few example applications that will achieve significant throughput and latency improvements resulting in faster access, real time response and increased number of users per server. ConnectX-2 EN improves network performance by increasing available bandwidth to the CPU and providing enhanced performance, especially in virtualized server environments.

ConnectX-2 EN protects investments by providing in hardware today support for DCE and Fibre Channel over Ethernet (FCoE) as well as technologies such as SR-IOV that provide enhanced virtual machine performance for virtualized servers.

Benefits

• 10Gb/s full duplex bandwidth for servers and storage
• Industry-leading throughput and latency performance
• I/O consolidation
• Virtualization acceleration
• High-performance networking and storage access
• Software compatible with standard TCP/ UDP/IP and iSCSI stacks

Key Features

• Dual 10 Gigabit Ethernet ports
• SFP+ for -SR, -LR, direct attached copper
• PCI Express (up to 5.0GT/s)
• Traffic steering across multiple cores
• TCP/UDP/IP stateless offload in hardware
• Intelligent interrupt coalescence
• Hardware-based I/O virtualization
• T11 FCoE frame support
• Data Center Bridging support
• Advanced Quality of Service
• RoHS-R6

Manual : Download
