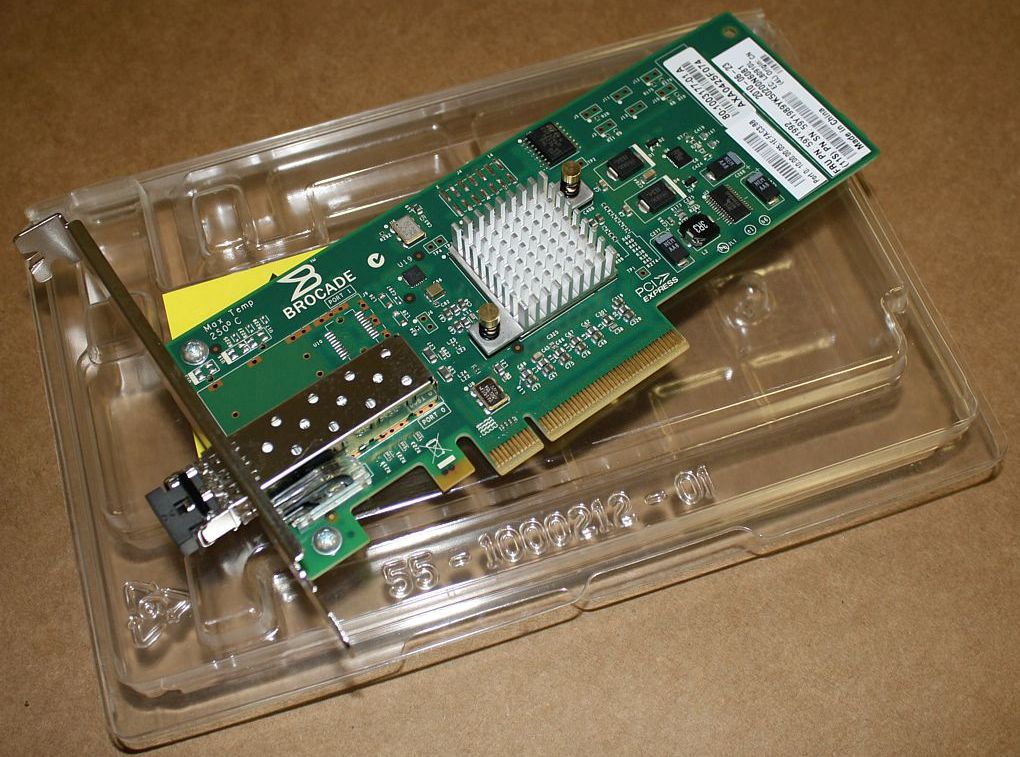

Brocade 415 Single Channel 4Gbps FC PCI-Express HBA
| Fibre Channel Specifications | |
|---|---|
| Data rate | Brocade 415/425: 4 Gbps (800 MB/sec); 2 Gbps (400 MB/sec); 1 Gbps (200 MB/sec) (per port) |
| Performance | Up to 500,000 IOPS per port at 4 Gbps |
| Protocols | SCSI-FCP, FCP-2, FCP-3, FC-SP |
| Topology | Point-to-point (N_Port), switched fabric (N_Port), including N_Port Trunking with frame-based load balancing |
| Class of service | Class 3, Class 2 control frames supported |
| Boot-over-SAN | DAS (point-to-point topology) and diskless fabric-based LUN discovery |
| LUN masking | Initiator-based LUN masking for storage traffic isolation |
| Target rate limiting | Throttles traffic based on target's (slower) speed capability |
| Distance support | Brocade 415/425
|
| Host Specifications | |
| Server platform | Intel (IA32, IEM64T,), AMD (x86, 64), and Sun (x86, SPARC) |
| Server chipset | Intel, nVidia, ServerWorks/Broadcom, AMD/ATI, and SPARC |
| Bus interface | PCI Express Gen 2.0 (x8) and Gen 3.0 compatible, with MSI-X and INTx |
| Software | |
| Management | Brocade Network Advisor (Professional, Professional Plus, Enterprise), including multiple host driver updates Brocade Host Connectivity Manager (HCM) Command Line Interface (CLI) |
| Driver- and HCM-supported operating systems | Microsoft Windows, Red Hat Linux, SUSE Linux, Oracle Linux and Oracle Solaris, VMware (ESX/ESXi), Microsoft Hyper-V, Oracle VM, Citrix XenServer, Xen for Red Hat, Xen for SUSE |
| APIs | SNIA-HBA-API 2.0 and FDMI-I |
| Physical Specifications | |
| Transceivers | Brocade 415/425: 4 Gbps Fibre Channel LC-style pluggable (SFP), MMF (850 nm), hot-swappable |
| Form factor | PCI Express low-profile form factor; 16.77 cm × 6.89 cm (6.60 in. × 2.71 in.) |
| Bracket size | Standard: 1.84 cm × 12.08 cm (0.73 in. × 4.76 in.) Low profile: 1.84 cm × 8.01 cm (0.73 in. × 3.15 in.) |
| Environmental and Power Requirements | |
| Airflow | No airflow required |
| Operating temperature Non-operating temperature | 0º C/32º F to 55º C/131º F (dry bulb) -43º C/-40º F to 73º C/163º F (dry bulb) |
| Operating humidity Non-operating humidity | 5% to 93% (relative, non-condensing) 5% to 95% (relative, non-condensing) |
| Power dissipation | 6 W (full line rate) |
| Operating voltage | 3.3 V |
| Agency Approvals | |
| United States | Bi-Nat UL/CSA 60950-1 1st Ed; ANSI C63.4; cCSAus; FCC Class B |
| Canada | Bi-Nat UL/CSA 60950-1 1st Ed; ICES-003 Class B; cCSAus |
| Japan | CISPR22 Class B and JEIDA (Harmonics); VCCI-B |
| European Union | EN60950-1; EN55022 Class B and EN55024; TUVBauart, CE Mark |
| Australia, New Zealand | EN55022 and CISPR22 Class B or AS/NZS CISPR22; C-Tick |
| Russia | IEC60950-1; 51318.22-99 and .24-99; GOST Mark |
| Korea | KN22 and KN24; MIC Mark Class B |
| Taiwan | CNS 14336(94); CNS 13438(95) Class A; BSMI Mark |
