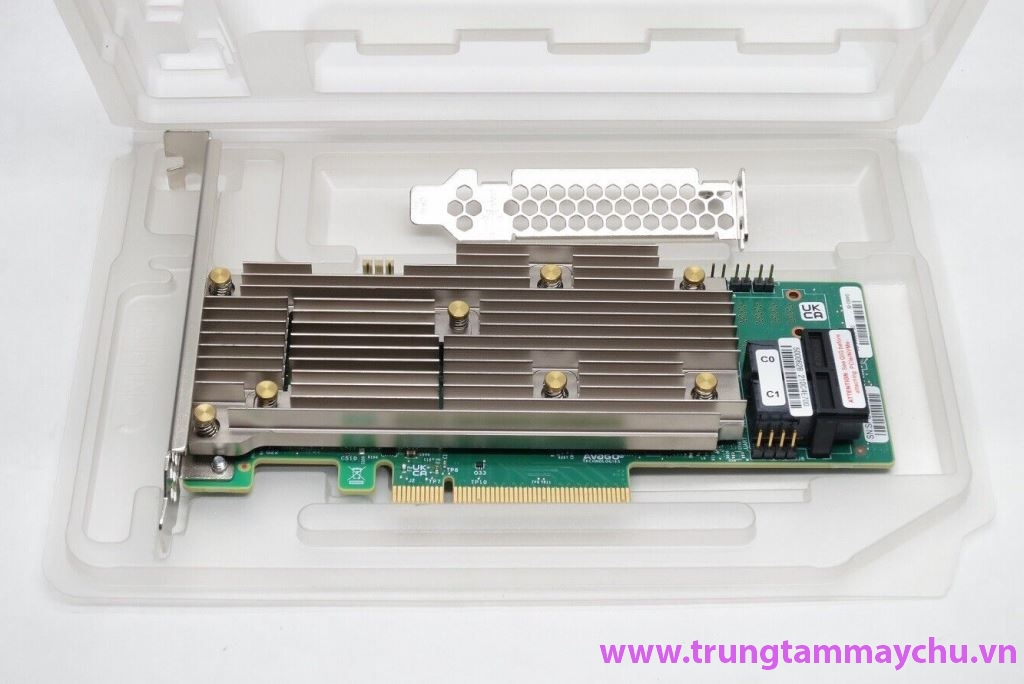

9460-8i

Ports

8 internal

Connectors

Two (x4) SFF-8643

Storage Interface Support

SAS, SATA, PCIe (NVMe)

Max PCIe (NVMe) Direct Attach Devices

Two x4, Four x2

Max Devices Per Controller

SAS/SATA: 240 NVMe: 24

Cache Memory

2 GB 2133MHz DDR4 SDRAM

I/O Processor / SAS Controller

SAS3508

Host Bus Type

PCIe 3.1 x8

Cache Protection

CacheVault CVPM05

Physical Dimensions

6.127″ x 2.712″

(155.65 mm x 68.90 mm)

Typical Power

14.16W

Airflow

250LFM at 55°C

Operating Conditions

Operating: 0°C to 55°C 20 to 80% non-condensing

Storage: -45°C to 105°C 5 to 95% non-condensing

MTBF (Calculated)

>3,000,000 hours at 40°C

Operating Voltage

+12V +/-8%; 3.3V +/-9%

Management Software

LSI Storage Authority (LSA) StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure)

Regulatory Certifications

USA (FCC 47 CFR part 15 Subpart B, class B); Canada (ICES -003, Class B); Taiwan (CNS 13438); Japan (VCCI V-3); Australia/New Zealand (AS/NZS CISPR 22); Korea (RRA no 2013-24 & 25); Europe (EN55022/EN55024); Safety: EN/IEC/ UL 60950; RoHS; WEEE

OS Support

Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/download-search for details on versions.
