Product SKUs

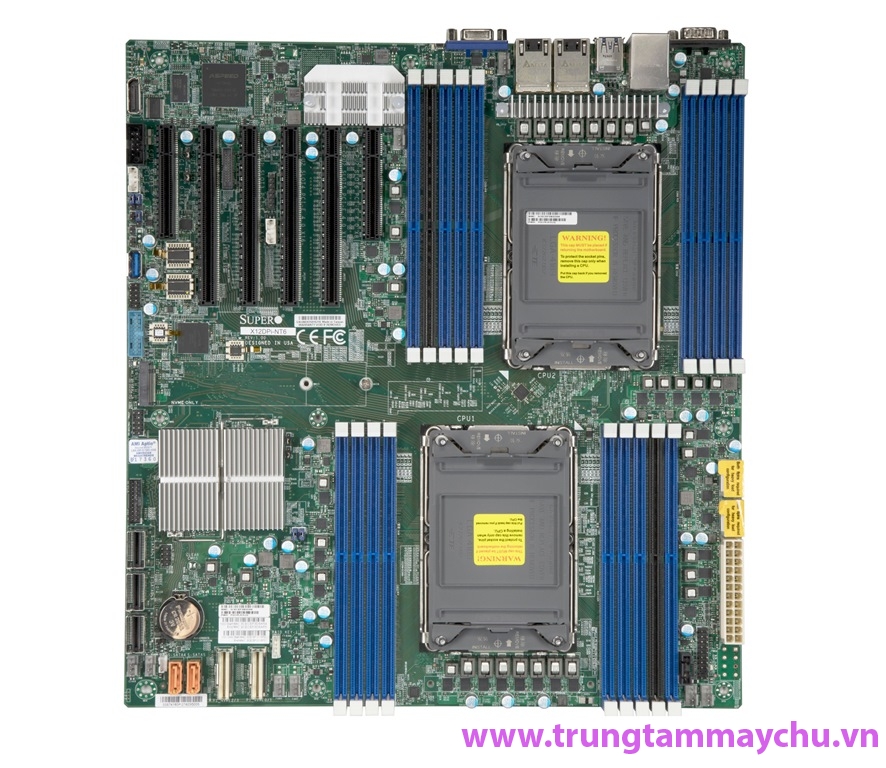

MBD-X12DPi-N6

X12DPi-N6

Physical Stats

Form Factor

E-ATX

Dimension

12" x 13" (30.48cm x 33.02cm)

Processor

CPU

3rd Gen Intel® Xeon® Scalable processors

Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

Core

Up to 40 cores

System Memory

Memory Capacity

18 DIMM slots

Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz

Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz

P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.

Memory Type

3200/2933/2666MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)

DIMM Sizes

LRDIMM: 256GB

RDIMM: 256GB

Memory Voltage

1.2V

Error Detection

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

Intel® C621A

SATA

Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

ASPEED AST2600 BMC

Network Controllers

Dual LAN with Intel® i350 Gigabit Ethernet Controller

Input / Output

SATA

14 SATA3 (6Gbps) port(s)

LAN

2 RJ45 Gigabit Ethernet LAN ports

USB

7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)

2 USB 2.0 port(s) (2 via header)

Video Output

2 VGA (1 rear bezel, 1 front panel) port(s)

Serial Port

2 COM Port(s) (1 header; 1 rear)

TPM

1 TPM Header

Expansion Slots

PCI-E

4 PCI-E 4.0 x16,

2 PCI-E 4.0 x8

M.2

M.2 Interface: 1 PCI-E 4.0 x4

Form Factor: 2280/22110

Key: M-Key

System BIOS

BIOS Type

AMI UEFI

Management

Software

SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog

System Management Software

SuperDoctor 5, IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, SSM, SUM, SPM

PC Health Monitoring

Voltage

VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status

LED

UID/Remote UID

Power LED

BMC/IPMI Heartbeat LED

Temperature

Monitoring for CPU and chassis environment

CPU thermal trip support

PECI

FAN

8x 4-pin fan headers (up to 8 fans)

PWM fan speed control

Other Features

WOL, UID, RoHS, Node Manager Support, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX Power connector, ACPI power management, SDDC, RoT, NCSI header

Operating Environment

Operating Temperature Range

10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range

-40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

8% - 90% (non-condensing)

Non Operating Relative Humidity Range

5% - 95% (non-condensing)
