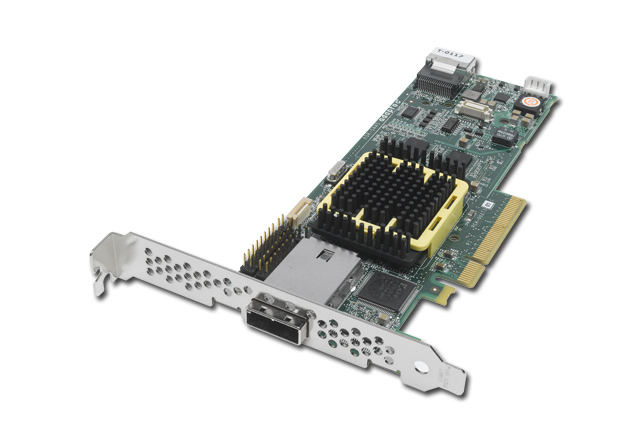

    • Adaptec Raid 5445

      [ Part number: 2244900-R ]

      Adaptec Raid 5445, 512MB Cache, 2 mini SAS. RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60

      Giá: Liên hệ

    Chọn mua

    Mua hàng

    Supported Operating Systems
      Microsoft Windows
    Red Hat Linux
    SUSE Linux
    SCO OpenServer
    UnixWare
    Sun Solaris
    FreeBSD
    VMware ESX
    Benefits
      Performance Unified Serial RAID controller supports both SATA and SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, and digital surveillance.
    Key Differentiators


    Intelligent Power Management

    Customer Needs
      High I/O transaction and high bandwidth processing.
    Form Factor
      MD2 Low-Profile
    Cache Memory


    512MB of DDR2 memory

    RAID Levels
      RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60
    Key RAID Features
      • Supports 8 direct-attached or up to 256 SATA or SAS disk drives using SAS expanders
    • RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50 and 60
    • Quick initialization
    • Online Capacity Expansion
    • Copyback Hot Spare
    • Dynamic caching algorithm
    • Native Command Queuing (NCQ)
    • Background initialization
    • Hot-plug drive support
    • RAID Level Migration
    • Hot spares – global, dedicated, and pooled
    • Automatic/manual rebuild of hot spares
    • SAF-TE enclosure management
    • Configurable stripe size
    • S.M.A.R.T. support
    • Up to 512TB array sizes
    • Multiple arrays per disk drive
    • Bad stripe table
    • Dynamic sector repair
    • Staggered drive spin-up
    • Bootable array support
    • Optimized Disk Utilization
    Bus System Interface Type
      8-lane PCIe
    External Connectors


    1 external (SFF-8088) Mini SAS

    Internal Connectors


    1 internal (SFF-8087) Mini SAS

    Data Transfer Rate
      3 Gb/s per port
    Package Contents
      • Adaptec RAID 5445 Controller
    • additional low profile vented bracket
    • Quick Installation Guide
    (English/French/German/Italian/Spanish)
    • Software and documentation CDs
    • Cable: one internal Mini SAS x4 to (4x) SATA fanout cable w/ sideband, 0.5 meter

    Management Utilities

    Adaptec Storage Manager™ (ASM)
    • Java-based GUI Management Utility
    • Remote configuration, monitoring & notification
    • ASM OS Support: Windows, Linux,  SCO, Solaris, FreeBSD
    • Microsoft VDS Support
    • SNMP, SMTP
    • Remote firmware updates

    ARCCONF
    • Command Line Interface
    • SMI-S support for VMware

    Adaptec BIOS Utility (ACU)
    • BIOS level configuration utility
    • Flashable BIOS support

    Physical Size

    2.5" H x 6.6" L (64mm x 167mm)

    Operating Temperature

    0°C to 55°C* (with 200 LFM airflow; without battery)
    0°C to 40°C* (with 200 LFM airflow; with battery)

    Note: This Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).

    * Ambient temperature measured 1" away from the RAID processor

    Operating Voltage

    0.45 amp @ 3.3V
    1 amp @ 12V

    Regulatory Certification

    CE, FCC, UL,  C-tick, VCCI

    Mean Time Before Failure (MTBF)

    873,402 hours at 40 degree C.
